Installing a Swimsuit Spinner

Installing your Swimsuit Dryer

Don't forget to your checklist before installing your Swimsuit Dryer:

Ambient Temperature

The ambient temperature of the area you are installing your Swimsuit Dryer must be no higher than 40 Degrees Celsius.

Power & Drainage

Ensure you have access to power and where and how the wastewater will removed. Contact a local qualified tradesman to ensure this is done correctly.

Solid Wall

We recommend for the quietest operation the equipment is fixed to a wall capable of supporting 30KG.

Installing your Swimsuit Dryer

Items Required (Not Supplied)

Make sure you have the following items before installation as these are not supplied:

• A suitable Masonry drill • Spirit Level
• 7 x Wall Fixings and Screws • Tape Measure
• Screwdrivers • Marker Pen • Conduit

Measure and Mark

Using a tape measure, measure and mark on the wall 100cm from the floor. Place the Wall plate (provided with your purchase) below your original mark and mark the holes on your wall.

Make sure to use a spirit level as the wall plate must be horizontal.

Installation Video

Remove the Packaging

Remove your Swimsuit Dryer from the packaging. Your wall plate, securing bracket and wall instructions are found inside the accessory pack. Remember to remove your transit bar from underneath the machine.

Fit The Dryer and Securing Bracket

After securing the wall plate, place the Swimsuit Dryer onto it ensuring it is flush against the wall. There should be no gaps between the dryer and the wall.

Connect your drain-hose

Pull the waste hose down from the dryer and connect this to either: your P-trap (fitted by a plumber/ tradesman) or connect your extended hose and pipe the water away to another location/ bucket.

Drill The Wall & Fit The Wall Plate

Use a suitable masonry drill to drill the 6 holes and fit the raw plugs. Once fitted line the wall plate with the holes and screw the wall plate securely.

Connect power to the unit

Fit the external conduit (if required) and connect the 3 core power cable to the fused spur; if you have purchased a Swimsuit Dryer with a plug on simply plug this in. Make sure to turn the RCD on and ensure the transit bar has been removed.

Give it a spin

Now everything’s done, give your Swimsuit Dryer a spin! Rember 0 – done in under 8 seconds.

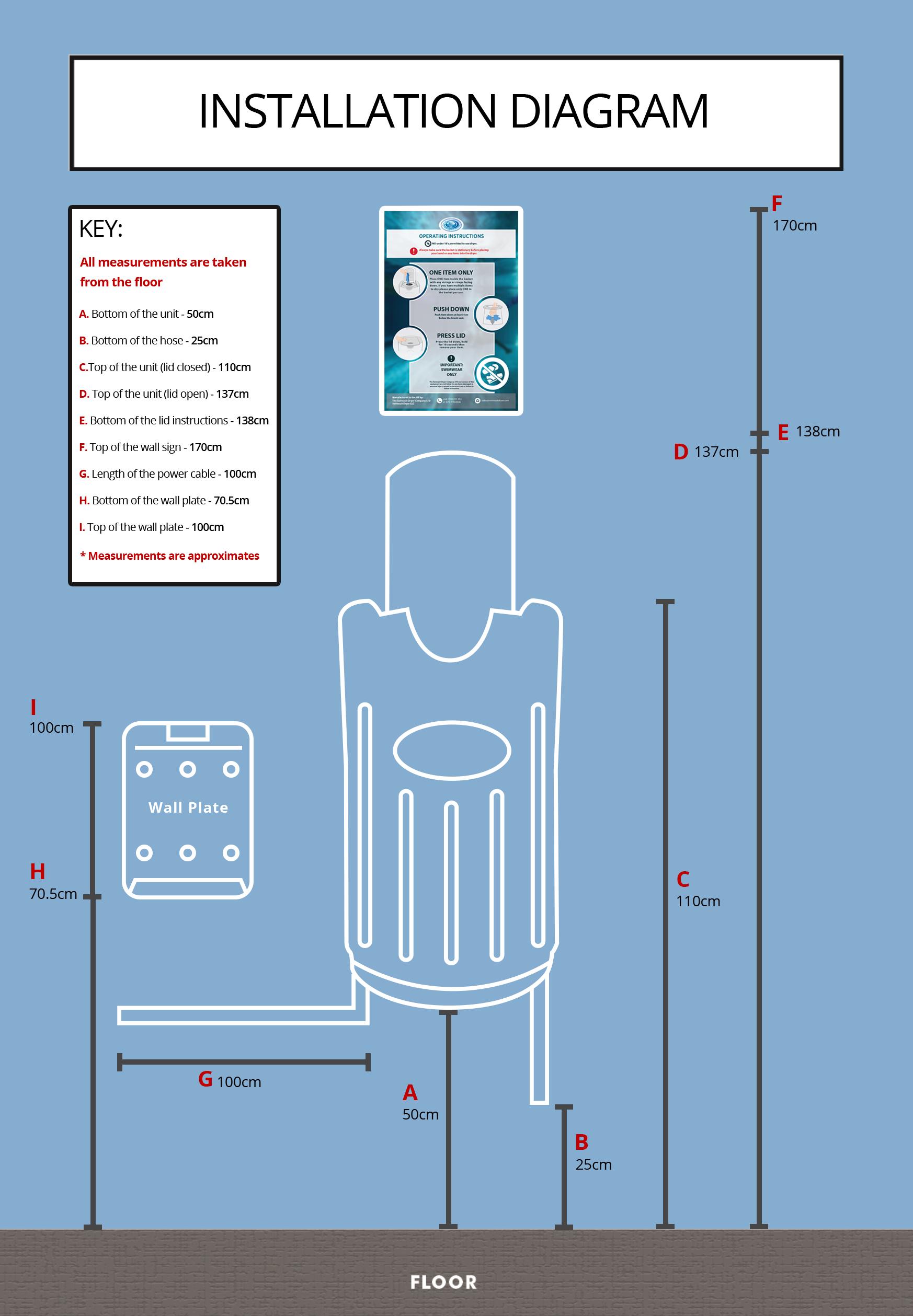

Installation Diagram

Download Installation Diagram

—– Problem With your Swimsuit Dryer After Installation —–

Transit Bar!

A common mistake is not removing the transit bar. If this is not removed the unit will not work.

RCD /GFCI

Check to make sure you turn your RCD/ GFCI on, if it is not switched on the Swimsuit Dryer will not work.

Check your power

Is there power going to the RCD/ GFCI? If there is no power going to it the machine will not work. To check this the front logo should be illuminated.
